This action adds a wire 2D Centroid marker and text labels for a selection. More...

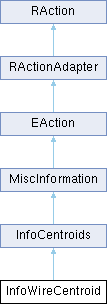

Inheritance diagram for InfoWireCentroid:

Public Member Functions
void	beginEvent ()
	This GUI action adds a 2D Centroid marker and detail labels for selected entities.

void	getArcWireCentroid (void arc)
	Arc RShape centroid data, including length (+).

void	getCircleWireCentroid (void circle)
	OK closed format Called by Main Circle RShape centroid data, including length (+).

void	getEllipseArcWireCentroid (void ellipse)
	Ellipse arc RShape centroid data, including length (+).

void	getEllipseWireCentroid (void ellipse)
	Ellipse RShape centroid data, including length (+).

void	getFullEllipseCircumISC (void a, void b, void terms)
	Full ellipse circumference (+) by series expansion, best suited for elongated ellipses.

void	getFullEllipseCircumISGK (void a, void b, void terms)
	Full ellipse circumference (+) by series expansion, best suited for round ellipses.

void	getFullEllipseWireCentroid (void ellipse)
	Full ellipse RShape centroid data, including circumference (+).

void	getLineWireCentroid (void line)
	Line segment RShape centroid data, including length (+).

void	getPolygonWireCentroid (void polygon)
	Closed or open polyline RShape with line segments centroid data, including length (+).

void	getPolylineWireCentroid (void polyline)
	Polyline RShape centroid data, including length (+).

void	getSplineWireCentroid (void spline)
	Spline RShape centroid data, including length (+).

void	getSupportedWireCentroidType (void entity)
	Diversifies uniform density wire centroids supported entity type or -1 when not supported.

void	InfoWireCentroid (void guiAction)

void	selectionsWireCentroid (void di)
	Main WireCentroid Main InfoWireCentroid loop.

Public Member Functions inherited from InfoCentroids
void	addCentroidMarker (void doc, void op, void dataC, void radius, void preview)
	Adding 2D Centroid marker to a given operation.

void	addTextLabel (void doc, void op, void pos, void offset, void text)
	Adding text labels to a given operation.

void	advanceSelection (void di, void transaction)
	Advance the selection to the added marker (polyline).

void	formatCmdValue (void value, void digits)
	Format a value textual for reporting on the command History.

void	formatCoordinate (void valueX, void valueY)
	Format a pair of values textual as coordinate.

void	formatLabelValue (void value, void decPnt, void digits, void trailingZ)
	Format a value textual for a 2D Centroid label.

void	formatPropValue (void value)
	Format a value textual for storing properties.

void	getMarkerSize ()
	Defines a 2D Centroid marker size based on overall box and drawing font size.

void	getRunningSumKBK (void list)
	Sums values in an array by 'A generalized Kahan–Babuška-Summation-Algorithm' proposed by Klein.

void	getTitle ()

void	InfoCentroids (void guiAction)

void	mergeBoxWith (void item)
	Accumulate a given item to an overall box size.

Public Member Functions inherited from MiscInformation
void	getTitle ()

void	MiscInformation (void guiAction)

Public Member Functions inherited from EAction
void	applyCommand (void event, void preview)
	High level event triggered when a command line command should be applied or previewed.

void	applyOperation ()
	Applies the operation returned by this.getOperation().

void	commandEvent (void event)
	Default implementation.

void	commandEventPreview (void event)
	Default implementation.

void	complementOperation (void op)
	Can be reimplemented to complement the operation of an action.

void	coordinateEvent (void event)
	Default implementation.

void	coordinateEventPreview (void event)
	Default implementation.

void	createDialog (void uiFile, void parent)
	Creates a new dialog based on the given UI file with the given parent.

void	createWidget (void uiFile, void parent)
	Creates a new widget based on the given UI file with the given parent.

void	EAction (void guiAction)

void	enterEvent ()
	Called when user presses enter.

void	entityPickEvent (void event)
	Default implementation.

void	entityPickEventPreview (void event)
	Default implementation.

void	escapeEvent ()
	Called when the user presses Escape or clicks the right mouse button.

void	finishEvent ()
	Called when this action is terminated.

void	getAuxPreview ()
	Called by updatePreview.

void	getClassName ()

void	getDocumentInterface ()

void	getEntityId (void event, void preview, void selectable)

void	getGraphicsView ()

void	getGraphicsViews ()

void	getHighlightedEntities ()
	Called by updatePreview.

void	getOperation (void preview)
	Called by updatePreview and applyOperation.

void	getScales ()

void	getToolTitle ()

void	handlePreviewError ()
	Called by updatePreview.

void	hideOptionsToolBarWidgets (void widgets, void noSyncWidgets)
	Hides all widgets in the options tool bar which are shown in the tool dialog instead.

void	hideUiOptions (void saveToSettings)
	Hides the UI options of this action.

void	initDialog (void dialog)
	Called before dialog is shown.

void	initState ()
	Called to initialize a new state of this action.

void	initUiOptions (void resume, void optionsToolBar, void forDialog)
	Overwrite to initialize combo boxes and other UI elements of the options tool bar.

void	isEntityEditable (void e)

void	isEntitySnappable (void e)

void	keyPressEvent (void event)
	Called when the user presses a key.

void	keyReleaseEvent (void event)
	Called when the user releases a key.

void	mouseDoubleClickEvent (void event)

void	mousePressEvent (void event)
	Does nothing.

void	mouseReleaseEvent (void event)

void	pickCoordinate (void event, void preview)
	High level event triggered when a coordinate was specified by the user of a coordinate specification should be previewed.

void	pickEntity (void event, void preview)
	High level event triggered when an entity was picked by the user or to preview picking an entity.

void	postOperation (void transaction)
	Can be reimplemented to work with the transaction returned by the operation.

void	propertyChangeEvent (void event)
	Allows all actions to handle property change events.

void	resumeEvent ()
	Called whenever the action resumes its operation, for example after it was temporary suspended for another action.

void	setArrowCursor ()
	Sets the current cursor of the current document interface (all views attached to it) to the normal arrow cursor.

void	setCommandPrompt (void prompt)

void	setCrosshairCursor ()
	Sets the current cursor of the current document interface (all views attached to it) to crosshair cursor.

void	setCursor (void cursor, void name)

void	setLeftMouseTip (void tip)

void	setRightMouseTip (void tip)

void	setState (void state)
	Set the state of this action.

void	setUiOptions (void uiFile, void split)
	Sets the UI options toolbar content for this tool.

void	showDialog ()
	Show dialog to enter some or all of the options.

void	showUiOptions (void resume, void restoreFromSettings)
	Shows the UI options of this action if this.uiFile is set.

void	simulateMouseMoveEvent ()

void	slotReset ()
	Called if the user clicks the reset button of an action.

void	suspendEvent ()
	Called whenever the action is suspended, for example if another action is started while this action is active.

void	updatePreview (void clear)
	Updates the preview based on the operation returned by getOperation and the auxiliary construction returned be getAuxPreview.

Public Member Functions inherited from RActionAdapter
virtual void	commandEvent (RCommandEvent &)
	Called when a command is entered in the command line.

virtual void	commandEventPreview (RCommandEvent &)
	Called when a command is being edited in the command line.

virtual void	coordinateEvent (RCoordinateEvent &)
	Called for every coordinate event.

virtual void	coordinateEventPreview (RCoordinateEvent &)
	Called if the action is in `PickCoordinate` mode and the mouse is moved around.

virtual void	entityPickEvent (REntityPickEvent &)

virtual void	entityPickEventPreview (REntityPickEvent &)

virtual void	keyPressEvent (QKeyEvent &)

virtual void	keyReleaseEvent (QKeyEvent &)

virtual void	mouseDoubleClickEvent (RMouseEvent &)
	Called on mouse double click events.

virtual void	mouseMoveEvent (RMouseEvent &)
	Called on mouse move events.

virtual void	mousePressEvent (RMouseEvent &)
	Called on mouse press events.

virtual void	mouseReleaseEvent (RMouseEvent &)
	Called on mouse release events.

virtual void	panGestureEvent (QPanGesture &)
	Called on pan gesture events.

virtual void	pinchGestureEvent (QPinchGesture &)
	Called on pinch gesture events.

virtual void	propertyChangeEvent (RPropertyEvent &)
	Called when the value of a property is modified while this action is active.

	RActionAdapter (RGuiAction *guiAction=NULL)

virtual void	setGraphicsView (RGraphicsView *)
	Called if this action is set as a navigation action of a graphics view.

virtual void	swipeGestureEvent (QSwipeGesture &)
	Called on swipe gesture events.

virtual void	tabletEvent (RTabletEvent &)
	Called on tablet events.

virtual void	wheelEvent (RWheelEvent &)
	Called on mouse wheel events.

virtual void	zoomChangeEvent (RGraphicsView &)
	Called when the zoom factor or offset changed in the given view.

virtual	~RActionAdapter ()

Public Member Functions inherited from RAction
RAction::ClickMode	getClickMode ()

virtual RDocument *	getDocument ()

QList< RGraphicsScene * >	getGraphicsScenes ()

virtual RGuiAction *	getGuiAction ()

RAction *	getOverrideBase ()

RStorage *	getStorage ()

QString	getUniqueGroup ()

bool	hasNoState ()

bool	isOverride ()

bool	isTerminated ()

	RAction (RGuiAction *guiAction=NULL)
	Copyright (c) 2011-2018 by Andrew Mustun.

void	setClickMode (RAction::ClickMode m)
	Sets the current click mode.

virtual void	setDocumentInterface (RDocumentInterface *di)

void	setGuiAction (RGuiAction *guiAction)

void	setNoState (bool on=true)

void	setOverride ()

void	setOverrideBase (RAction *base)

void	setUniqueGroup (const QString &ug)

virtual RVector	snap (RMouseEvent &event, bool preview=false)
	Uses the currently active snap function to snap to the closest object or grid point.

void	terminate ()
	Terminates the action.

virtual	~RAction ()

Additional Inherited Members
Public Types inherited from RAction
enum	ClickMode { PickCoordinate , PickCoordinateNoSnap , PickEntity , PickingDisabled }
	Current mouse click mode. More...

Public Attributes inherited from EAction
int	additionalOptionsToolBars

int	delegate

int	dialogUiFile

int	guiAction

int	includeBasePath

int	optionsToolBarEnabled

int	optOutRelativeZeroResume

int	relativeZeroPos

int	resuming

int	settingsGroup

int	splitUiOptions

int	state

int	uiFile

int	useDialog

int	waitingForContextMenu

Protected Attributes inherited from RAction
RAction::ClickMode	clickMode

RDocumentInterface *	documentInterface

RGuiAction *	guiAction

bool	noState
	Indicates whether this action is stateless (i.e.

bool	override

RAction *	overrideBase

bool	terminated

QString	uniqueGroup

Detailed Description

This action adds a wire 2D Centroid marker and text labels for a selection.

Author: CVH © 2021

Constructor & Destructor Documentation

◆ InfoWireCentroid()

void InfoWireCentroid::InfoWireCentroid ( void guiAction )

inline

Member Function Documentation

◆ beginEvent()

void InfoWireCentroid::beginEvent ( )

inlinevirtual

This GUI action adds a 2D Centroid marker and detail labels for selected entities.

Calculates overall centroid position and total length assuming a uniform density wire. Casts additional details as text labels and reports them on the Command History. Stores full floating point data as marker custom properties. 2D Centroid markers are generated with a default density of 1.00 per unit. Supports single or multiple selected entities:

Line entity.
Arc entity.
Circle entity.
Ellipse entity, full or approximated as ellipse arc.
Polyline entity.
Spline entity as approximated polyline. Not interpolating with line segments, the methods sum lengths and centroids by shapes.

Included are various methods for wire 2D Centroids of RShapes.

Reimplemented from InfoCentroids.

◆ getArcWireCentroid()

void InfoWireCentroid::getArcWireCentroid ( void arc )

inline

Arc RShape centroid data, including length (+).

Considering a wire of uniform density.

Author: CVH © 2021

Parameters

arc	An arc RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getCircleWireCentroid()

void InfoWireCentroid::getCircleWireCentroid ( void circle )

inline

OK closed format Called by Main Circle RShape centroid data, including length (+).

Considering a wire of uniform density.

Author: CVH © 2021

Parameters

circle An circle RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getEllipseArcWireCentroid()

void InfoWireCentroid::getEllipseArcWireCentroid ( void ellipse )

inline

Ellipse arc RShape centroid data, including length (+).

Considering a wire of uniform density. Approximated with a polyline given the XP method number of arc segments, at least 4096.

Author: CVH © 2021

Parameters

ellipse A spline RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getEllipseWireCentroid()

void InfoWireCentroid::getEllipseWireCentroid ( void ellipse )

inline

Ellipse RShape centroid data, including length (+).

Diversifies between a full ellipse or an ellipse arc. Considering a wire of uniform density. Ifso, approximated with a polyline given the XP method number of arc segments.

Author: CVH © 2021

Parameters

ellipse An ellipse RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getFullEllipseCircumISC()

void InfoWireCentroid::getFullEllipseCircumISC	(	void	a,
		void	b,
		void	terms )

inline

Full ellipse circumference (+) by series expansion, best suited for elongated ellipses.

Fast converging exact infinite series expansion for a given number of terms. Also known as the 'Cayley's series expansion'. The first term is 4 times the major radius for a degenerated ellipse. Optimal used for ratio <= 0.35 within 20 terms, halts on converging numerical.

Author: CVH © 2021

Parameters

a	Full ellipse major radius.
b	Full ellipse minor radius.
terms	Limit expansion to n terms. (4<=n<=20)

Returns: Unsigned circumference or 'NaN'.

◆ getFullEllipseCircumISGK()

void InfoWireCentroid::getFullEllipseCircumISGK	(	void	a,
		void	b,
		void	terms )

inline

Full ellipse circumference (+) by series expansion, best suited for round ellipses.

Exact infinite series expansion for a given number of terms. Also known as the 'Gauss-Kummer series expansion'. The first term is 2piR for a circular ellipse. Optimized with a list of factors, one for each expansion term. Optimal used for ratio > 0.35 within 20 terms.

Author: CVH © 2021

Parameters

a	Full ellipse major radius.
b	Full ellipse minor radius.
terms	Limit expansion to n terms. (4<=n<=20)

Returns: Unsigned circumference or 'NaN'.

◆ getFullEllipseWireCentroid()

void InfoWireCentroid::getFullEllipseWireCentroid ( void ellipse )

inline

Full ellipse RShape centroid data, including circumference (+).

Considering a wire of uniform density. Centroid closed format equation, nearly exact circumference by infinite series expansion.

Author: CVH © 2021

Parameters

ellipse A full ellipse RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getLineWireCentroid()

void InfoWireCentroid::getLineWireCentroid ( void line )

inline

Line segment RShape centroid data, including length (+).

Considering a wire of uniform density. Excluding Rays and Xlines

Author: CVH © 2021

Parameters

line	A line RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getPolygonWireCentroid()

void InfoWireCentroid::getPolygonWireCentroid ( void polygon )

inline

Closed or open polyline RShape with line segments centroid data, including length (+).

Considering a wire of uniform density.

Parameters

polygon A polyline RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getPolylineWireCentroid()

void InfoWireCentroid::getPolylineWireCentroid ( void polyline )

inline

Polyline RShape centroid data, including length (+).

Considering a wire of uniform density.

Parameters

polyline A polyline RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getSplineWireCentroid()

void InfoWireCentroid::getSplineWireCentroid ( void spline )

inline

Spline RShape centroid data, including length (+).

Considering a wire of uniform density. Approximated with a polyline given the XP method tolerance.

Parameters

spline A spline RShape.

Returns: [centroid.x, centroid.y, centroid, length] or 'undefined'.

◆ getSupportedWireCentroidType()

void InfoWireCentroid::getSupportedWireCentroidType ( void entity )

inline

Diversifies uniform density wire centroids supported entity type or -1 when not supported.

REntity based (Excludes RSolids and so).

◆ selectionsWireCentroid()

void InfoWireCentroid::selectionsWireCentroid ( void di )

inline

Main WireCentroid Main InfoWireCentroid loop.

A uniform wire should not be confused with a bended bar or hollow pipe for that matter. Can be a good 'better than nothing' approximation with a curved nature.

Parameters

di	A document interface.

Returns: Nothing. Casts 2D Centroid marker and text labels, reports on Command History.

The documentation for this class was generated from the following file:

scripts/Misc/MiscInformation/InfoCentroids/InfoWireCentroid/InfoWireCentroid.js

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ InfoWireCentroid()

Member Function Documentation

◆ beginEvent()

◆ getArcWireCentroid()

◆ getCircleWireCentroid()

◆ getEllipseArcWireCentroid()

◆ getEllipseWireCentroid()

◆ getFullEllipseCircumISC()

◆ getFullEllipseCircumISGK()

◆ getFullEllipseWireCentroid()

◆ getLineWireCentroid()

◆ getPolygonWireCentroid()

◆ getPolylineWireCentroid()

◆ getSplineWireCentroid()

◆ getSupportedWireCentroidType()

◆ selectionsWireCentroid()
